Up and charging!!!!

Here is a brief description-

Designed and built in the USA

The power plug comes in a 50A configuration so that you can plug it into a 50A dedicated circuit and charge your EV at a full 30A. If you only have a 30A circuit, you can reconfigure the plug to 30A and charge at 20A.

120/240 VAC universal input with plug change

It can charge at 15, 20 or 30 Amps

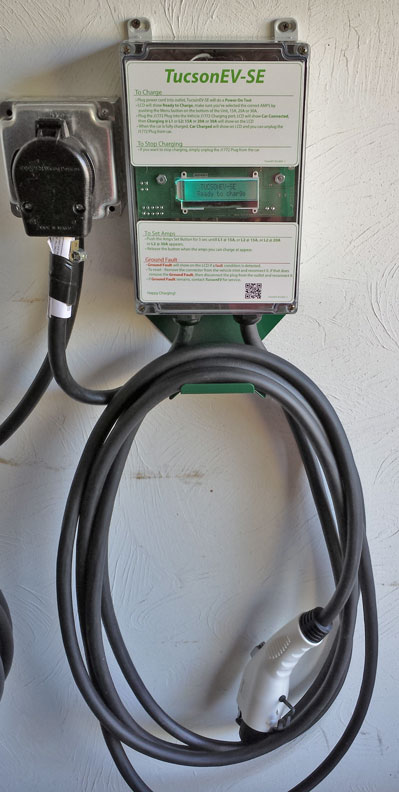

Choose the location you want, put up an appropriate receptacle for the plug and mount the TucsonEV-SE next to it.

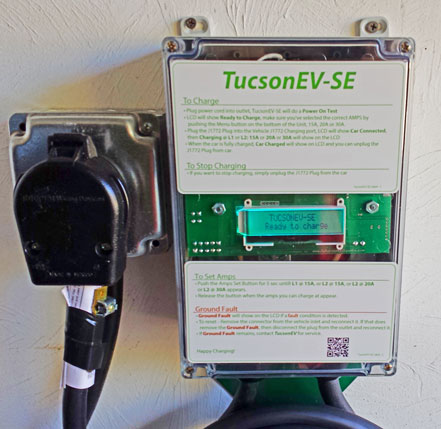

Plug the J1772 Plug into your charging port and start charging your EV!

It really is a plug and charge EVSE.And it is portable!

And NO ASSEMBLY required.

There are plans to make it also 40A capable.

Comes with a 1 year warranty on all parts.

Each of the main screen changes is accompanied by a beep or series of beeps on a buzzer.

All pin connections are crimped to Military Specs.

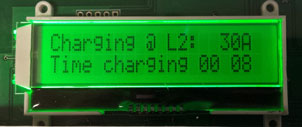

Some of the LCD Screens

The Housing -

- OA size is 6.3" wide x 9.5" high x 3.5" deep
- Molded in polycarbonate material which carries a UL flammability rating of UL94 5V and is suitable for outdoor use.
- Designed to meet IP66 & NEMA 4, 4X, 12 & 13 ratings
- Box Color is light gray (RAL 7035)
- Clear polycarbonate lid
- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
- Lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings
- Lid and mounting holes are located outside of the gasket seal.

Power Specifications:

  • Voltage/Circuit:120vac to 240V, 15A to 30A
  • Input Phase: Single
  • Frequency 50/60 Hz
  • Connector: SAE J1772™ & NEC625Compliant
  • Pilot: SAE 1772™ Compliant
  • Ground Fault Trip Level. 17.5 mA (20mA Max
  • Protection: Auto Test
  • Breaker Size: 40A or 50 A
  • Output -240vac/ 30A Max
  • Protection: ReclosureCCID
  • Ground Wire: Continual Test

  • Technical Specifcations -

  • J1772 SAE Compliant
  • Operating Temperature -35°C to +66°C (-30ºF to +150ºF)
  • Storage Temperature -40°C to +85°C (-40ºF to +185ºF)
  • Ground Fault Test - Automatic at start-up (Firmware controlled)
  • Ground Fault Retry - 4 retries @15 min. intervals (per UL 2594/UL 2231)
  • J1772 Cord is 20 ft long
  • LCD Power Indication and Charge Status
  • Dimensions - 6” W x 12” L(includes metal cord holder) x 3” D.
  • Can be mounted on wall or pedestal
  • Here are some preliminary Assembly Instructions

    The price is $600 plus shipping - Email us for full price (EV at TucsonEV dot com)

    There is a disclaimer to sign so if you're interested please let me know and I can send it to you.

    Thank you, TucsonEV




    If you are interested email us at - TucsonEV (EV at TucsonEV dot com)
